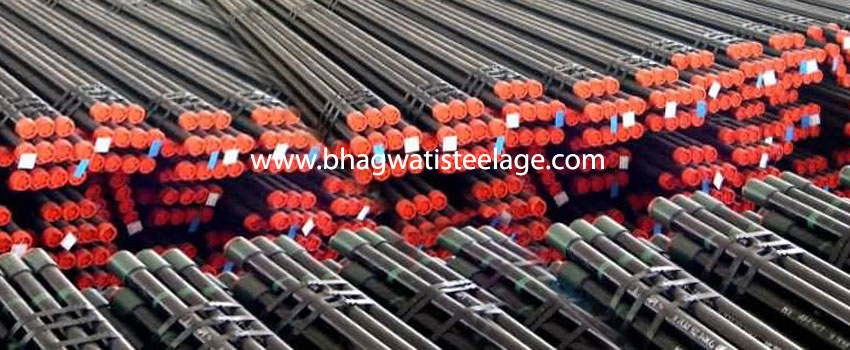

ASTM A512 Cold-Drawn Buttweld Carbon Mechanical Tubing Suppliers in India, ASTM A512 – Cold Drawn Buttweld

ASTM A512 mt1010, ASTM A512 Ateel Tube, ASTM A512 Ateel Tubing


ASTM A512 Tubing Manufacturers in India

ASTM A512 Tubing Manufacturers in India


EX stock of ISMT make Carbon Steel Pipe, Carbon Steel Seamless Pipe, Carbon Steel ERW Pipe, ASTM A512 Tubing Manufacturers in India

a106 grade b pipe suppliers
astm a333 grade 6 pipe manufacturers
pipe astm a53 grade b suppliers
ASTM A135 pipe
ASTM A139 pipe
ASTM A179 Tube
A210 Boiler Tube
ASTM A333 pipe
ASTM A334 Pipes
ASTM A334 grade 6 Pipe
ASTM A550 steel pipe
ASTM A500 grade b pipe
ASTM A501 pipe
ASTM A512 tubing
ASTM A513 pipe
ASTM A671 pipe
ASTM A672 pipe
Carbon Steel Seamless Pipe
ASTM A517 pipe
4140 seamless steel tubing
ASTM A519 tubing


ASTM A512 – Cold Drawn Buttweld

Buttweld mechanical tubing is made from buttwelded or continuous welded tube hollows, drawn to size with a mandrel. It is produced in OD sizes ranging from 1/4 inch to 3-1/2 inch OD. The tubing is cold drawn for the purpose of obtaining dimensional accuracy and improved mechanical properties. Applications include axles, truck and railroad parts, and many more where weight-to-strength ratio and tolerances are important.

ASTM A512 ASME SA512 Standard for Cold-Drawn Buttweld Carbon Steel Mechanical Tubing covers cold-drawn buttweld carbon steel tubes for use as round, square, rectangular or special shape mechanical tubing. The carbon steel can be made unless a specific type of melting process is required by the purchaser.

This specification covers cold-drawn buttweld carbon steel tubes for use as mechanical tubing.

This specification covers round, square, rectangular, and special shape mechanical tubing.

Round tube size ranges covered are outside diameters up to 3 1/2 in. (88.9 mm) and wall thickness from 0.035 to 0.500 in. (0.89 to 12.70 mm).


ASTM A512 Tubing Diameter

(Including Ovality) Mandrel Down

OD Size
Range
Inches
OD
Tolerance
Inches
ID
Tolerlance
Inches
0.500 to 1.499
+0.005
+0.000
– 0.000
– 0.005*
1.500 & Over
+0.010
+0.000
– 0.000
– 0.010

*Under 0.500 inch ID a greater tolerance may be required.



ASTM A512 Tubing Standard Dimensional Tolerances — Round Tubing

Wall
Mandrel drawn plus or minus 7 percent, except when walls are lighter than 0.156 inch, the tolerance is plus or minus 10 percent.

Length
Mandrel Drawn

Length Range
Fleet
OD Size Range
Inches
Tolerance
Inches
4 and less
to 2.000
+1/16-0
4 and less
2.001 & Over
+3/32-0
4 to 10
to 2.000
+3/32-0
4 to 10
2.001 & Over
+1/8 -0
Over 10
All
+1/8 -0


ASTM A512 Tubing, Round Tubing Tolerances

  • Straightness — Mandrel Drawn
    0.030 inch maximum deviation from a straight line in a three foot length. Under three feet, 0.010 inch per foot. Soft annealed tubing or small diameter long lengths may exceed these figures.

    Concentricity — Mandrel Drawn
    5 percent of the wall. The wall is calculated from the mean OD and mean ID after applying standard tolerances. 5 percent eccentricity equals 10 percent total indicator reading when chucked on the OD and gaged on the ID or vice versa

    MECHANICAL PROPERTIES
    Round Tubing Mandrel Drawn Stress Relieved*

    Grade
    Minimum
    Yield,
    PSI
    Minimum
    Tensile,
    PSI
    Elongation
    Percent
    in 2 In.
    Minimum
    Hardiness
    Rockwell B
    C-1010
    58,000
    63,000
    15
    70
    C-1012
    58,000
    63,000
    15
    70
    C-1015
    60,000
    66,000
    14
    72
    C-1016
    61,500
    67,000
    13
    73
    C-1018
    62,500
    68,000
    13
    73
    C-1020
    65,000
    71,000
    11
    73
    C-1030
    70,000
    80,000
    10
    80
    C-1110
    58,000
    63,000
    15
    70
    C-1115
    62,500
    68,000
    13
    73

    *Soft and intermediate annealed tubing is also available.



Carbon Steel Pipe, Carbon Steel Tube, Carbon Steel Tubing Grades & Carbon Steel Pipe Stock



are you looking for jsl make carbon steel pipe, carbon steel Tube Buy directly from dealer of jindal limited

  •   Carbon Steel Pipe
  •   carbon steel pipe manufacturers in india
  •   carbon steel pipe suppliers
  •   carbon steel tube suppliers
  •   carbon steel tubing suppliers
  •   carbon steel seamless pipe manufacturers
  •   a106 grade b pipe suppliers
  •   astm a106 grade b seamless pipe
  •   astm a106 grade b welded pipe
  •   astm a53 grade b pipe
  •   pipe astm a53 grade b supplier
  •   astm a53 erw steel pipe manufacturers in india
  •   astm a333 grade 6 pipe
  •   astm a333 grade 6 pipe manufacturers in india
  •   astm a333 grade 6 pipe manufacturers
  •   astm a334-6 pipe manufacturers
  •   astm a333 pipe,
  •   astm a333 pipe manufacturers in india
  •   astm a333 pipe suppliers
  •   astm a672 gr b60
  •   astm a672 grade b70 pipes
  •   astm a672 c70 pipe manufacturers in india
  •   astm a672 c70 pipe manufacturers in india
  •   a210 boiler tube suppliers
  •   ASTM A334 Pipes
  •   astm a334 grade 6 pipe manufacturers
  •   a334 grade 1 pipe manufacturers
  •   astm a334 grade 3 pipe manufacturers
  •   astm a334 grade 3 pipe manufacturers
  •   astm a334 pipes manufacturers
  •   ASTM A671 Pipe
  •   astm a671 pipe manufacturers
  •   astm a671 pipe manufacturers in india
  •   a671 pipe manufacturer in india
  •   astm a671 grade cc65 pipes
  •   astm a671 gr cc65 class 22
  •   astm a671 gr cc65 cl22 pipe manufacturers in india
  •   astm a671 cc65 cl22 pipe manufacturers in india
  •   a671 cc65 cl22 pipe manufacturers in india
  •   a671 cc65 cl22 efw pipe manufacturers in india
  •   a671 cc65 cl22 pipe manufacturers
  •   astm a333 grade 1 pipe manufacturers
  •   astm a333 grade 3 pipe manufacturers
  •   astm a333 grade 8 manufacturers
  •   ASTM A135 Pipe
  •   astm a135 steel pipe manufacturers in india
  •   astm a135 pipe manufacturers in india
  •   ASTM A139 Pipe
  •   astm a139 grade b steel pipe manufacturers in india
  •   astm a139 pipe manufacturers in india
  •   a139 grade b pipe manufacturers in india
  •   a139 grade b pipe manufacturers
  •   ASTM A179 Tube
  •   astm a179 tube manufacturer in india
  •   astm a671 grade cc70 pipes
  •   astm a671 cc 70 pipe manufacturers in india
  •   -astm a672 carbon steel pipe manufacturers in india
  •   a672 pipe manufacturers in india
  •   a672 pipe supplier
  •   astm a672 material
  •   astm a672 pipe manufacturers in india
  •   astm a672 gr b60 class 12 pipe manufacturers in india
  •   astm a179 pipe suppliers
  •   sa 179 tube suppliers
  •   astm a179 tube manufacturers in india
  •   astm a179 seamless steel tube manufacturers
  •   astm a179 seamless pipe manufacturers
  •   A210 Boiler Tube
  •   astm a210 grade a1 pipe manufacturers in india
  •   astm a210 seamless tubes manufacturers in india
  •   tubo astm a210 manufacturers in india
  •   a210 boiler tube manufacturers in india
  •   a210 a1 boiler tube manufacturers
  •   astm a671 cc60 class 22 pipe manufacturers in india
  •   astm a671 gr cb60 pipe manufacturers in india
  •   astm a671 gr. cc60 cl.22 pipe manufacturers in india
  •   a671 cc60 pipe manufacturers
  •   astm a671 grade cc60 pipes
  •   astm a671 cc60 cl 12 pipe manufacturers in india
  •   astm a671 cc60 cl 32 pipe manufacturers in india
  •   astm a671 cc65 cl22 s2 pipe manufacturers in india

ASTM A512 Tubing Size & Stock Range

Pipe/ Tube Type NB Sizes Sch 5 Sch 10 Sch 40 Sch 80 Sch 160
ASTM A512 Tubing
1/2
Available
Available
Available
Available
ASTM A512 Tubing
3/4
Available
Available
Available
Available
ASTM A512 Tubing
1
Available
Available
Available
Available
ASTM A512 Tubing
1.25
Available
Available
Available
Available
Available
ASTM A512 Tubing
1.5
Available
Available
Available
Available
Available
ASTM A512 Tubing
2
Available
Available
Available
Available
Available
ASTM A512 Tubing
2.5
Available
Available
Available
Available
Available
ASTM A512 Tubing
3
Available
Available
Available
Available
Available
ASTM A512 Tubing
3.5
Available
Available
Available
Available
Available
ASTM A512 Tubing
4
Available
Available
Available
Available
Available
ASTM A512 Tubing
5
Available
Available
Available
Available
Available
ASTM A512 Tubing
6
Available
Available
Available
Available
Available
ASTM A512 Tubing
8
Available
Available
Available
Available
Available
ASTM A512 Tubing
10
Available
Available
Available
Available
Available
ASTM A512 Tubing
12
Available
Available
Available
Available
Available
ASTM A512 Tubing
14
Available
Available
Available
Available
Available
ASTM A512 Tubing
16
Available
Available
Available
Available
Available
ASTM A512 Tubing
18
Available
Available
Available
Available
Available
ASTM A512 Tubing
20
Available
Available
Available
Available
Available
ASTM A512 Tubing
22
Available
Available
Available
Available
ASTM A512 Tubing
24
Available
Available
Available
Available

ASTM A512 Tubing Available Surface Finish

Surface Finishes: Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap.
End Finishes: Beveled, Square Cut, Threaded & Coupled.


Check Our Heavy Sale Products of Carbon Steel Pipes,Tubes at most attractive price offer

  •   Carbon Steel Pipes Sour Service Line Pipes
  •   Carbon Steel Pipes for Oil and Gas
  •   Carbon Steel Pipes NACE MR-0175 Line Pipes
  •   Carbon Steel Line Pipes
  •   Carbon Steel Pipes SSAW (Spiral Welded)
  •   Carbon Steel Pipes EFW
  •   Carbon Steel Pipes ERW
  •   Carbon Steel Pipes HSAW
  •   Carbon Steel Pipes LSAW
  •   Carbon Steel Pipes IBR
  •   Carbon Steel Pipes Seamless
  •   Carbon Steel Pipes Welded
  •   Carbon Steel Pipes Grade A
  •   Carbon Steel Pipes Grade C
  •   Carbon Steel Pipes Grade D
  •   ASTM A 106 Gr B / C Carbon Steel Pipe & Tubes
  •   ASTM A 671 Carbon Steel Welded Pipe & Tubes
  •   ASTM A 672 Carbon Steel Welded Pipe & Tubes
  •   ASTM A 671 Grade CC 60 Carbon Steel EFW Pipe & Tubes
  •   Carbon Steel Pipes Nace
  •   Carbon Steel Pipes for Petrochemical
  •   Carbon Steel Pipes for Oil Drilling & Exploration
  •   Carbon Steel Tubing
  •   Carbon Steel Pipes SAW
  •   Carbon Steel Pipes Boiler
  •   Carbon Steel Pipes Nippon Steel & Sumitomo
  •   Carbon Steel Pipes SCH STD
  •   Carbon Steel Pipes SCH 40
  •   Carbon Steel Pipes SCH 20
  •   Carbon Steel Pipes SCH XS
  •   Carbon Steel Pipes SCH 80
  •   Carbon Steel Pipes SCH 160
  •   Carbon Steel Pipes SCH XXS
  •   ASTM A671 Grade Cc60 Grade Cc70 Efw Pipe
  •   ASTM A672 Grade C60/C65/C70 EFW Pipes & Tubes
  •   Carbon Steel cmn tubes
  •   Carbon Steel cserw tubes
  •   Carbon Steel super heater tubes
  •   Carbon Steel Pipes for Rigs
  •   Carbon Steel Pipes for CBM Field
  •   Carbon Steel Tubería
  •   Carbon Steel tubular
  •   Carbon Steel Butt Weld Fittings
  •   Carbon Steel Forged Fittings
  •   Carbon Steel Manifold Fittings
  •   Carbon Steel Flanges
  •   Carbon Steel Specialty Items
  •   Carbon Steel carbon steel tube
  •   Carbon Steel super heater tubes
  •   ASTM A 333 Gr 6 Low Temperature Carbon Steel Pipe & Tubes
  •   Carbon Steel Saw Pipes & Tubes
  •   Carbon Steel Lsaw Pipes & Tubes

  • ASTM A512 Tubing Packaging & Shipping

    ASTM A512 Tubing in Seamless & Welded both are loose or in bundles tightened with Iron Strips. Special packings: Metal or Wooden Cases, Pallets etc. Plastic closes both ends, Hexagonal bundles maximum 2.000 kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and IN in sackcloth with several steel strips, Plastic caps.

    Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested. We can also offer customized packaging forASTM A512 Tubing as per customer's requirement.

    ASTM A512 TubingMarking Requirements
    Rolled, die stamped, or paint stenciled (manufacturer’s option).

    • Manufacturer’s name, brand, or trademark
    • ASTM A512 Tubing
    • ANSI schedule number or weight class or wall thickness
    • Additional “S” if tested supplementary requirements
    • Hydrostatic test pressure and/or NDE, or NH if neither is specified
    • Size, length, weight per foot (NPS 4 and larger)

    Overseas Packaging

    Export packaging is geared towards the protection, handling and transport ofASTM A512 Tubing by air or sea freight and, as such, shares many characteristics with export and transport packaging. Utmost care must also be taken to make overseas packaging suitable for long periods of storage. It is important for overseas packaging to be designed with ease of handling in mind, so as to ensureASTM A512 Tubing is treated with the utmost care at all times.

    Applications Of ASTM A512 Tubing In Seamless & Welded Form

    1. Refineries
    2. Power Plants
    3. Boilers
    4. Ship Building
    5. Heat Exchangers
    6. Condensers
    7. Paper & Pulp
    8. Marine Applications
    9. Nuclear Power
    10. Fossil Fuel Power Plants

    Brands we Stock & Supply of ASTM A512 Tubing

    Authorised Dealer & distributor of
    United Seamless Limited -usl ASTM A512 Tubing
    United Seamless Limited -usl ASTM A512 Tubing
    Bao Steel- Bao ASTM A512 Tubing
    Bao Steel- Bao ASTM A512 Tubing
    Yangzhou Lontrin Steel Tube -lontrin ASTM A512 Tubing
    Yangzhou Lontrin Steel Tube -lontrin ASTM A512 Tubing
    Sumitomo Metals Smtm ASTM A512 Tubing
    Sumitomo Metals Smtm ASTM A512 Tubing
    Tenaris -tnrs ASTM A512 Tubing
    Tenaris -tnrs ASTM A512 Tubing
    Valourec & Mannesman -v&m ASTM A512 Tubing
    Valourec & Mannesman -v&m ASTM A512 Tubing
    Wuxi ASTM A512 Tubing
    Wuxi ASTM A512 Tubing
    Maharastra Seamless Limited -msl ASTM A512 Tubing
    Maharastra Seamless Limited -msl ASTM A512 Tubing
    Indian Seamless Metal Tubes Limited _ismt ASTM A512 Tubing
    Indian Seamless Metal Tubes Limited _ismt ASTM A512 Tubing
    Jindal Saw Ltd -jsl ASTM A512 Tubing
    Jindal Saw Ltd -jsl ASTM A512 Tubing

    We are approved vendor & Suppliers of ASTM A512 Tubing in GASCO, KNPC, SAUDI ARAMCO, SABIC, ORPIC, NIORDC, PIDMCO etc.

    Vendor & Suppliers of
    United Seamless Limited -usl Astm A106 Grade B Pipe
    GASCO
    Bao Steel- Bao Astm A106 Grade B Pipe
    KNPC
    Yangzhou Lontrin Steel Tube -lontrin Astm A106 Grade B Pipe
    SAUDI ARAMCO
    Sumitomo Metals Smtm Astm A106 Grade B Pipe
    SABIC
    Tenaris -tnrs Astm A106 Grade B Pipe
    ORPIC
    Tenaris -tnrs Astm A106 Grade B Pipe
    PIDMCO

    Mumbai
    Thane
    Navi Mumbai
    Pune
    Pimpri-Chinchwad
    Vadodara
    Kolkata
    Gurgaon
    Ahmedabad
    New Delhi
    Bengaluru
    Chennai
    Surat
    Bhopal
    Ulsan
    Faridabad
    Houston
    Dubai
    Seoul
    Hyderabad
    Singapore
    Abu Dhabi
    Tehran
    Calgary
    Noida
    Riyadh
    London
    Coimbatore
    Jakarta
    Istanbul
    Bangkok
    Kuwait City
    Sharjah
    Muscat
    Edmonton
    Edmonton
    Busan
    Mexico City
    Doha
    Jeddah
    Aberdeen
    Cairo
    Geoje-si
    Perth
    Santiago
    Chandigarh
    Indore
    Kuala Lumpur
    Rio de Janeiro
    Dammam
    Melbourne
    Madrid
    La Victoria
    Bogota
    Lahore
    Los Angeles
    Algiers
    Chiyoda
    Ankara
    Ho Chi Minh City
    Toronto
    Hong Kong
    Rajkot
    Brisbane
    Petaling Jaya
    Ernakulam
    Secunderabad
    Gimhae-si
    Al Jubail
    Port-of-Spain
    Thiruvananthapuram
    Milan
    Atyrau
    Lagos
    Hanoi
    Howrah
    Sydney
    Ahvaz
    Karachi
    New York
    Caracas
    Vung Tau
    Al Khobar
    Manama
    Montreal
    Granada
    Courbevoie
    Visakhapatnam
    Ludhiana
    Moscow
    Dallas
    Haryana
    Colombo
    India
    Saudi Arabia
    Bangladesh
    United States
    UAE
    Canada
    Angola
    Argentina
    Austria
    Azerbaijan
    Pakistan
    Peru
    Chile
    Spain
    France
    United Kingdom
    Indonesia
    Israel
    Iran
    Kuwait
    Mexico
    Malaysia
    Nigeria
    Serbia
    Singapore
    Taiwan
    Chile
    Venezuela
    Ecuador
    Netherlands
    Brazil
    Colombia
    Ghana
    Iran
    Denmark
    Poland
    Australia
    Afghanistan
    Bahrain
    Costa Rica
    Egypt
    Iraq
    Jordan
    South Korea
    Kazakhstan
    Sri Lanka
    Lithuania
    Norway
    Oman
    Philippines
    Poland
    Qatar
    Russia
    Vietnam
    South Africa
    Nigeria
    Mexico
    Turkey
    Hungary
    Algeria
    Belarus
    Belgium
    Bhutan
    Bolivia
    Bulgaria
    Croatia
    Czech Republic
    Estonia
    Finland
    Greece
    Italy
    Japan
    Libya
    Romania
    Thailand
    Trinidad
    Tobago
    Tunisia
    Ukraine
    Yemen
    Hong Kong
    Gabon
    China
    Portugal
    Switzerland
    New Zealand
    Sweden
    Slovakia
    Kenya
    Lebanon
    Morocco
    Mongolia

    ASTM A512 Tubing Manufacturers in India, ASTM A512 Tubing Suppliers, ASTM A512 Tubing Distributors, ASTM A512 Tubing Stockholders, ASTM A512 Tubing Wholesalers, ASTM A512 Tubing, ASTM A512 Tubing Dealers, ASTM A512 Tubing Stockists, astm a512 pipe manufacturers
